TEMPERATURE SCANNING SYSTEMS

With the aim of encouraging the return to work and the resumption of normal activities safely, GSR Technology Italy has introduced a new range of products essential for carrying out temperature controls of employees and visitors for companies such as: factories, hospitals, hotels, shops, cinemas, theaters, gyms, restaurants, pharmacies and many others.

Our temperature detection systems can contribute to delimiting possible and important problems, optimizing the return of all employees to the workplace today and keeping any possible new problems monitored tomorrow.

Many advantages of the temperature detection system, including:

  • Protect your employees and prevent infected people from gaining access to the company
  • Keep the workplace safe for employees and guests
  • Avoid contact as it is a contactless device
  • The device has a facial recognition system

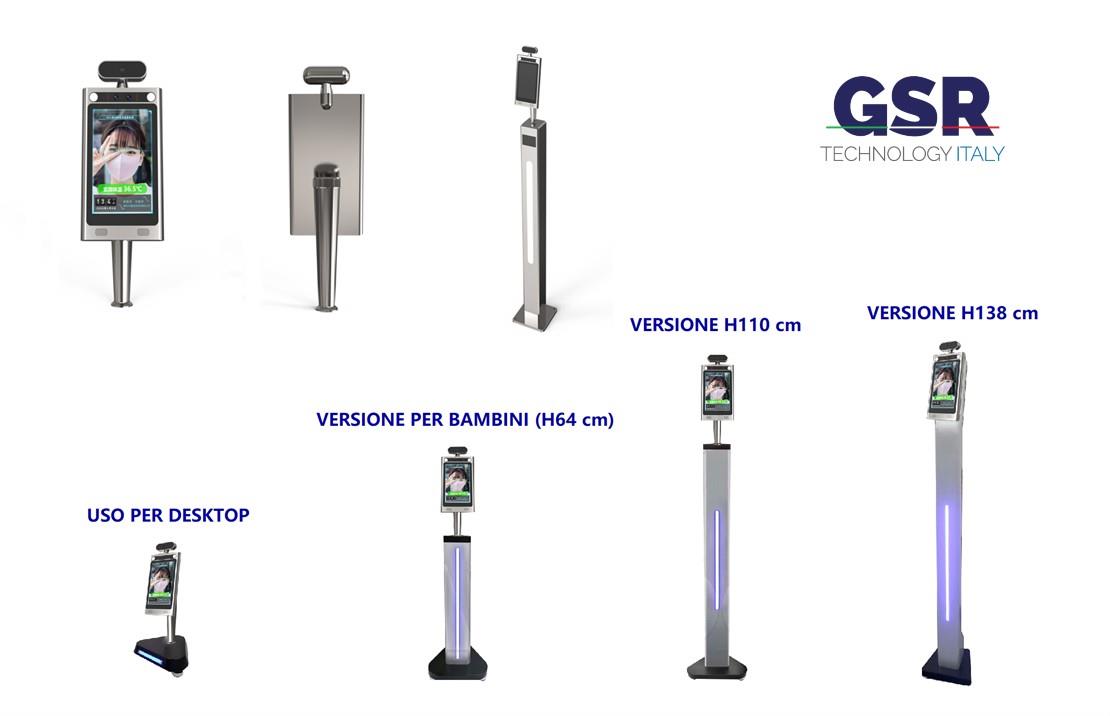

  • The device can be easily installed on the wall, on the desktop and with a floor standing
  • Very accurate system with temperature tolerance of ± 0.3 ° C
  • Measurement up to 50-70 cm
  • Voice system available in Italian
  • ID card reader or similar available
  • Tax credit for workplace sanitation costs of 50% of the expenses, up to a maximum of € 20,000, in compliance with the “Cura Italia” decree, extending the possibility to the purchase personal protective equipment, masks and safety glasses (example: gloves, masks, visors, safety glasses, protective suits and shoes), as well as detergents, disinfectants and other devices to protect workers from exposure to biological agents or to keep them at a safe distance (such as protective panels).



TEMPERATURE SCANNING SYSTEM - PRODUCT INFORMATION
SYSTEM ROCKCHIP RK3288 Frequency 1.8G
RAM 2G
Memory 16GB
System Android 5.1 O/S
DISPLAY IPS screen 8” IPS
Resolution 1280x800
Contrast ratio 1000
Brightness 350cd/m2
Screen ratio 16:10
NETWORK WiFi 802.11b/g/n  2.4G
Bluetooth BT4.1
4G 4G (Full Netcom) (Optional)
INTERFACE Relay High and low frequency switch
USB OTG data
Wiegand serial port RS232 + Wiegand
RJ-45 100/1000mbps with POE 802.3af/802.3at
GPIO PORT Support
Power adapter DC adapter
Serial port  RS485
SOFTWARE Living human body detection 100% identification of real person, avoid photos or videos
Recognition distanceSuggested around 50-70cm
Dual light multi lattice infrared thermal imaging Accurate recognition temperature warning with data stored in cloud server
OTHER FUNCTIONS Wireless mouse Support
Human body detection module Infrared detection
Human temperature range  +28°C ~ + 43° C ± 0,3 °C
White fill light White board uniform light supplement
Status indicator Two color LED function indicator
MIC Front built-in microphone
Dual light infrared thermal image detection Heimann Sensor (Dual light Infrared thermal imaging detection)
Speaker Front built-in Micro-speakers, 2*2W
Wide dynamic of binocular living  200W  1080P front camera
OSD Multilingual OSD in English/German/ Italian/ Japanese/Korean
RELIABILITY Working temperature -10°C  ~ +60°C
Working humidity 20% ~ 95%  Non condensing
Storage temperature -10°C ~ +65°C
Overall power consumption Below 18 Watt
Protection level IP65 (front & rear)
ESD Positive and negative 4Kv contact discharge/8Kv air discharge
Power supply 12VDC/2A


CERITIFICATIONS CE, FCC, ROHS
